TUBOMATIC J67 EL

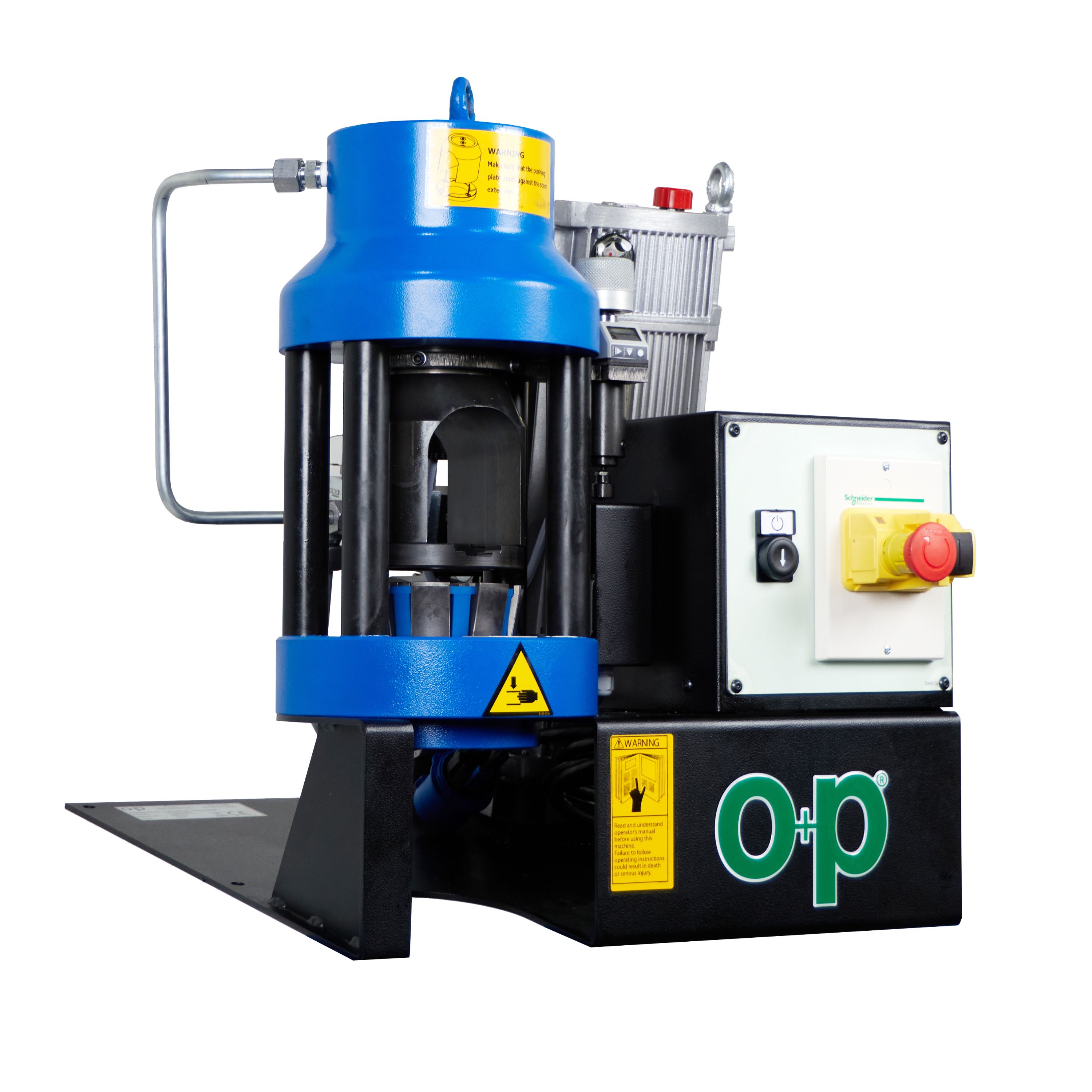

GET PRICINGTubomatic J67 EL is the crimper ideal for hydraulic hoses up to 1"1/4 four spirals and 1"1/2 two spirals. This versatile machine is the perfect equipment for manufacturers and hydraulic hose assemblers.
MAIN FEATURES:
- electric pump
- vertical working position
- hydraulic unit 700 bar / 10,150 psi
- CRIMPING FORCE190 US TONS
- 4 SPIRALS1"1/4
- 2 BRAIDS1"1/2
- MAX CRIMPING DIAMETER67mm (2.6")
- 90° FITTINGS1"1/2*
- STANDARD VOLTAGE110V 60HZ 1PH
- MOTOR POWER1.1 KW (1.5 HP)
- DIMENSIONS L x W x H25.1"X22.4"X25.9"
- WEIGHT WITHOUT OIL291 Lbs
- OIL7 LT. (1.8 US gal)
- CYLINDERSINGLE EFFECT
